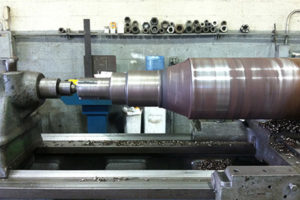

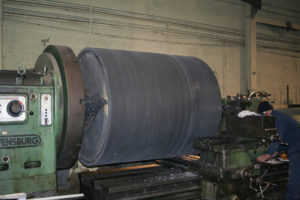

Clark Machine was recently contracted by a steel mill for the repair of a series of large mill rolls used in their steel processing operation. Clark specified a multi-step procedure for the reconstruction of the mill rolls. Material was added using MIG, FCAW, SMAW welding, followed by milling to required dimensions and additional machining to restore journals and keyways. The rolls featured dimensions of 16″ in diameter and 186″ in length, and were machined using our engine lathes, and a horizontal boring mill. The entire process was subject to our own stringent quality measures which included weld and dimensional inspections.

To learn more about this project, or the processes used to complete it, see the table below or contact Clark Machine directly.

Specific Details on Mill Roll Rebuilding Project

Product Description

Rebuilding and repairing rolls for steel processing facilities

Capabilities Applied/Processes


  • Build up rolls with weld (MIG, FCAW, SMAW)
  • Mill welded surface back down to required dimensions and finish
  • Machine journals to appropriate specifications
  • Machine keyway
Equipment Used to Manufacture Part
  • Welder (MIG, FCAW, SMAW)
  • Engine Lathe
  • Horizontal Boring Mill
Overall Part Dimensions

16″ Diameter
186″ Long

Material Used

Weld Wire (steel, stainless steel)

Material Finish

Machined Stainless Steel

In process testing/inspection performed

Dimensional Inspection
Weld Inspection

Industry for Use

Steel Processing

Delivery/Turnaround Time

Per customer schedule

Delivery Location

Baltimore, Maryland

Standards Met

Customer Specifications, 2D CAD Drawing

Product Name

Mill Rolls
